The Malmo Steels 70P system is an universal facade scaffolding system which, if properly configured, can meet scaffolding 6th group requirements according to DIN EN 12811 standard. The main component of the scaffolding system are hot-dip galvanized steel metal frames. Equipped with star connecting bolt system to suspend two platforms and with locks for securing handrails, braces and boards. Vertical bracing has the form of z-angle ties.
Components:
Wide range of lengths and the ability to combine 1.5m, 2.0m, 2.5m and 3.0m modules. Ease of assembly and also simple construction are the reasons that it is the most popular scaffolding in Europe.
Availability of multiple accessories, such as consoles, wooden, steel and aluminium & plywood platforms, 0.6m and 1.0m leveling frames and more, ensures flexible adaptability and precise vertical positioning of scaffolding on difficult terrain, regardless of the conditions at the construction site.
During scaffolding production, special attention is pain to its finishing quality. Hot-dip galvanized surfaces of steel elements contribute to high corrosion resistance of the system. Hand rails, and tie-rods, locks are all forged. High quality impregnate applied on wooden platforms is yet another element contributing to the Malmo Steels 70P Scaffolding long usable-life.
With each scaffolding kit, customers receive a statement confirming its compliance with PN-EN standards, as well as assemble and disassembly instructions (technical & operational documentation). These are the only documents required under applicable laws, that authorize sales and operation of scaffoldings in EU countries.

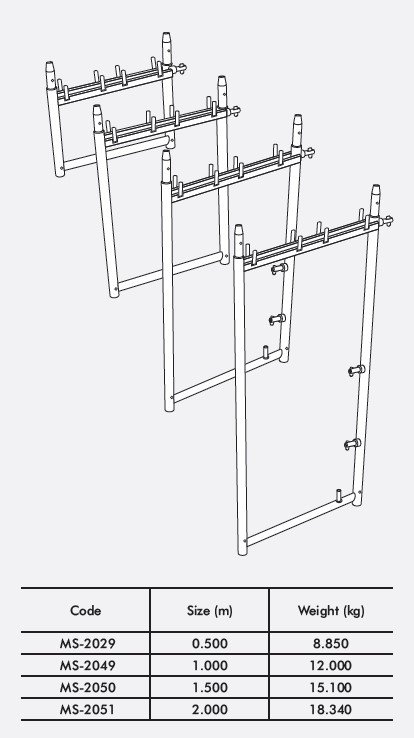

This is the basic load-bearing component of the scaffolding. 0.74m-wide frame made of dia. 48.3mm steel tubes, hot-dip galvanized. Equipped with star connecting bolt system to suspend two platforms and with locks for securing handrails, braces and barrier boards.
0.32m-wide and 48mm-thick platform, immersion-impregnated, made of pinewood planks bound with D6-class waterproof glue. Bevelled platform edges. Equipped with fittings to secure platform on bolts. Symmetrical design of ferrules allows platform installation in two orientations.
0.32m-wide steel platform made of profiled sheet metal plates, hot-dip galvanized. Anti-slip coarse surface.
0.65m-wide platform-aluminium frame with replaceable anti-slip plywood plate.
0.65m-wide platform-aluminium frame with replaceable anti-slip plywood plate. The platform has a swivel-mounted manhole with integrated welded aluminium ladder. Its purpose is to ensure safe circulation on the scaffolding.
48.3 mm dia. steel tube, hot-dip galvanized. Equipped with forged ferrule for angle tie installation in the frame U-section. Used for vertical reinforcement of the scaffolding.
0.74m-wide post, made of 48.3mm dia. steel tube, hot-dip galvanized. Equipped with die forged locks for hand -rails curbs.
This is the basic load-bearing component of the scaffolding. 0.74m-wide frame made of dia. 48.3mm steel tubes, hot-dip galvanized. Equipped with star connecting bolt system to suspend two platforms and with locks for securing handrails, braces and barrier boards.
A150mm-tall and 30mm-thick board made of pinewood, immersion – impregnated. Edges of the board are bevelled. Used to protect scaffoldings longitudinal surfaces.
Hot-dip galvanized steel tube pressed over on both ends, with holes for its installation in hand -rail posts and frames locks.
Hot-dip galvanized steel hand-rail. Used for protecting the front side of the scaffolding’s operating area. Installed onto the frame using a semi-link.
0.74m-wide frame made of dia. 48.3mm tubes, hot-dip galvanized. Equipped with integrated hand-rails. Used for protecting the front side of the scaffolding and the platform on its top level.
A 150mm-tall and 30mm-thick board made of pinewood, immersion – impregnated. Edges of the board are bevelled. Used to protect scaffoldings front surfaces.
Made of 38 mm dia. threaded tubular bolt, measuring 150x150mm. Equipped with die forged nut with socket for the frame pipe installation, hot-dip galvanized. Used for compensation of terrain unevenness.
Made of 48.3mm dia. Steel tube, hot-dip galvanized. Equipped with a special hook allowing the scaffolding to be anchored to a wall.
Galvanized steel bolt. Used for scaffolding anchoring to a wall. Available in following dimensions.
A steel element made of the U-section, hot-dip galvanized. Equipped with two semi-links used for installation to the scaffolding’s main frame and with a tubular link for hand-rails posts installation. Used for extending the scaffolding width inwards by one additional 0.32-wide wooden/steel platform.
A steel element, hot-dip galvanized. Equipped with two semi-links used for installation to the scaffolding’s main frame and with a tubular link for hand-rails posts installation. Used for extending the scaffolding width inwards or outwards by two additional 0.32-wode wooden/steel platforms or one additional 0.65-wide aluminium & plywood platform, as well as to move the scaffolding along its vertical axis.
A steel element made of the U-section, hot-dip galvanized. Equipped with two semi-links used for installation to the scaffolding’s main frame. Used to install the platform at any height of the scaffolding frame.
This truss is made of two 48.3mm steel tubes and angular and crosswise bracings, hot-dip galvanized. It is used to cross non-standard obstacles.
A steel element, hot-dip galvanized. Enable securing braces on the first level.
