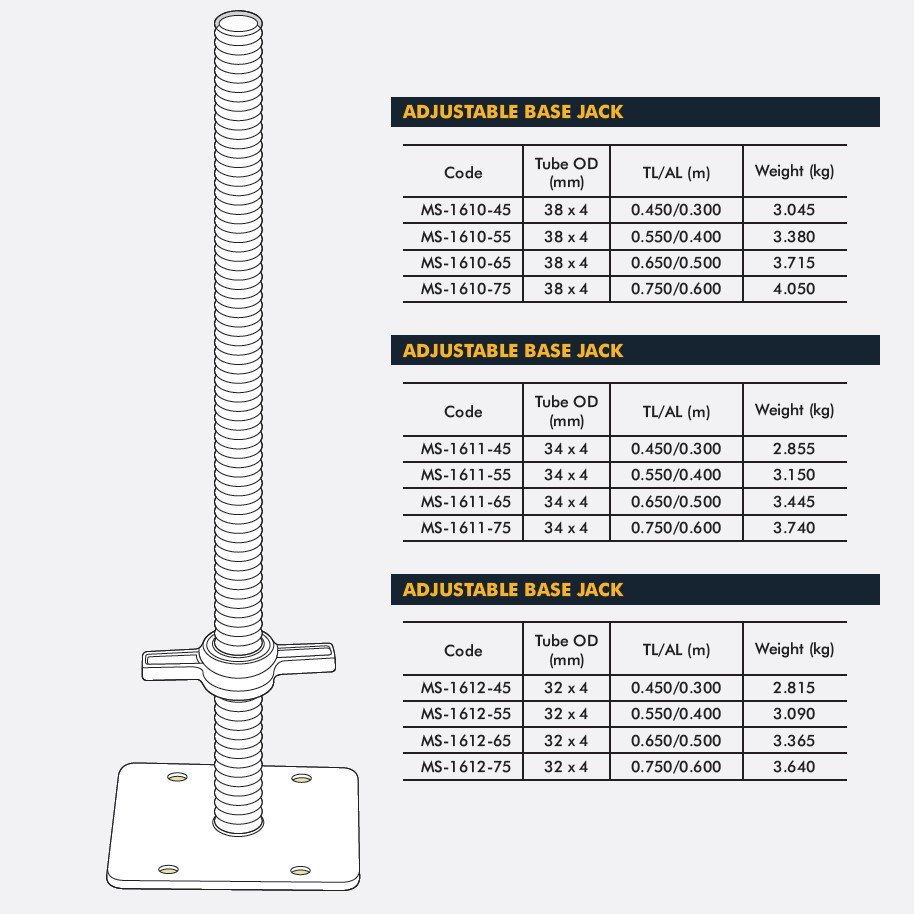

Adjustable Base Jacks

Base Jack /Adjustable Base Jacks used for Height Adjustment from floor bottom supporting and also used for Support Un-even Ground Level and Distribute load Spread on floor. Base Jack Adjustment for slab & beams, formwork wall Support, It has a jack nut which provides for accurate Height adjustment for final distance cover the end final Adjustable.

Base jack / Adjustable Base Jack insert bottom Of on Cup lock Vertical, Scaffolding Pipe & Height Adjust with The Help of Nut Up – Down on Threaded Rod & Final Setting Achieved.

Base Plate

Base Plate Used for Distribute Heavy Load on floor and also used base plate for Un-even Ground Level as well as if used without PCC. Main work of Base Plate for Vertically point load Transfer on base plate.

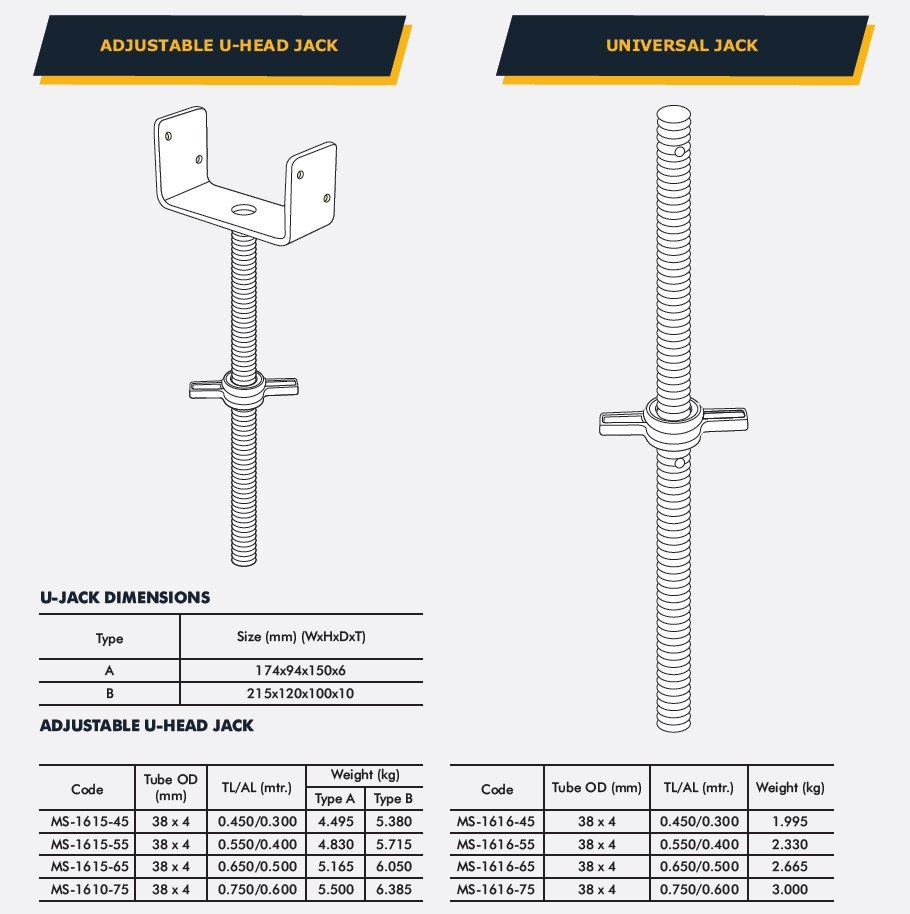

Adjustable U-Head Jack

Adjustable U-Head Jacks are made of a “U” shaped steel plate, screw jack. Adjustable U Jacks / Stir-up heads are used for supporting floor forms, slab & beams, formwork wall Support. It has a jack nut which provides for accurate Height adjustment for final distance cover the end final Adjustable. U jack / Stirrup Head insert Top Of on Cup lock Vertical, H- Frame, Scaffolding Pipe & Height Adjust with The Help of Nut Up – Down on Threaded Rod & Final Setting Achieved.

Universal Jack

As part of the primary components of any scaffolding project, a universal jack scaffolding is something that your scaffolding formwork should never miss to have. It’s the base or the foundation of any scaffolding structure. This is the part or the component that provides the bottom stability of the scaffold. In simpler terms, the universal jack scaffolding part is relevant because of the fact that it’s responsible for the stature and the posture of all scaffolding formworks and structures.

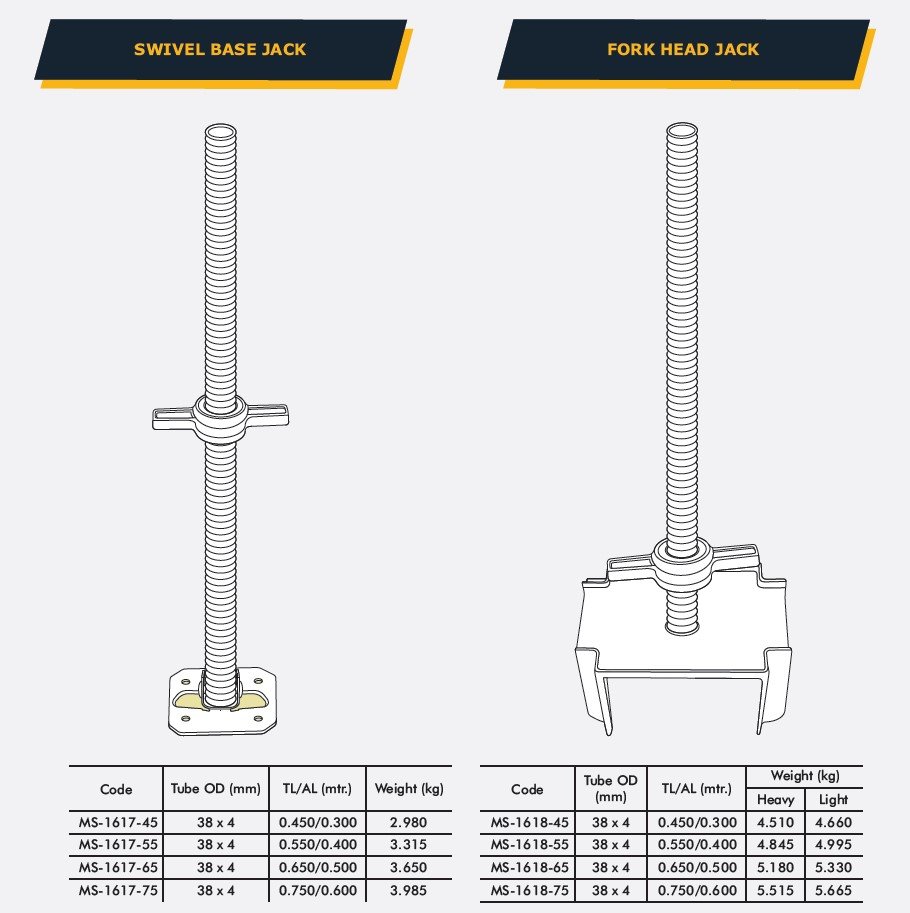

Swivel Base Jack

The Swivel System Jack is a pivotal component in scaffolding, designed for height adjustment and leveling. Its swiveling capability adds versatility to scaffold structures, allowing for precise alignment on uneven surfaces while erecting a scaffold

The Swivel Base Jack is a type of scaffold screw jack with a swivel base plate, a threaded stem, and a scaffold jack nut handle. When you want to set scaffolding on uneven ground, a scaffold swivel base jack is needed. It helps you level scaffolding at a required height for scaffolding.

The swivel base jack is compatible with tube and fitting scaffolds as well as scaffold systems like cuplock, ringlock, kwikstage, and frames.

Fork Head Jack

Adjustable forkhead jack is also called four-way jacks or fork head scaffold jacks. Each scaffold forkhead jack includes four scaffold parts: screw jack stem, jack nuts(handle), base plate, and four pieces of steel angle forks.
The adj scaffold forkhead jacks are a support component for formwork scaffolding. It is used popularly in slab formwork and beam formwork concreting.

You can use the adjustable scaffold fork head jack in all scaffold systems too: ringlock, cuplock, kwikstage, quick lock scaffold, shoring frames, and traditional frame scaffold as well as tube & coupler scaffolding, etc.
More than the adjustable fork head jack we offer fixed-type scaffold fork heads too.
